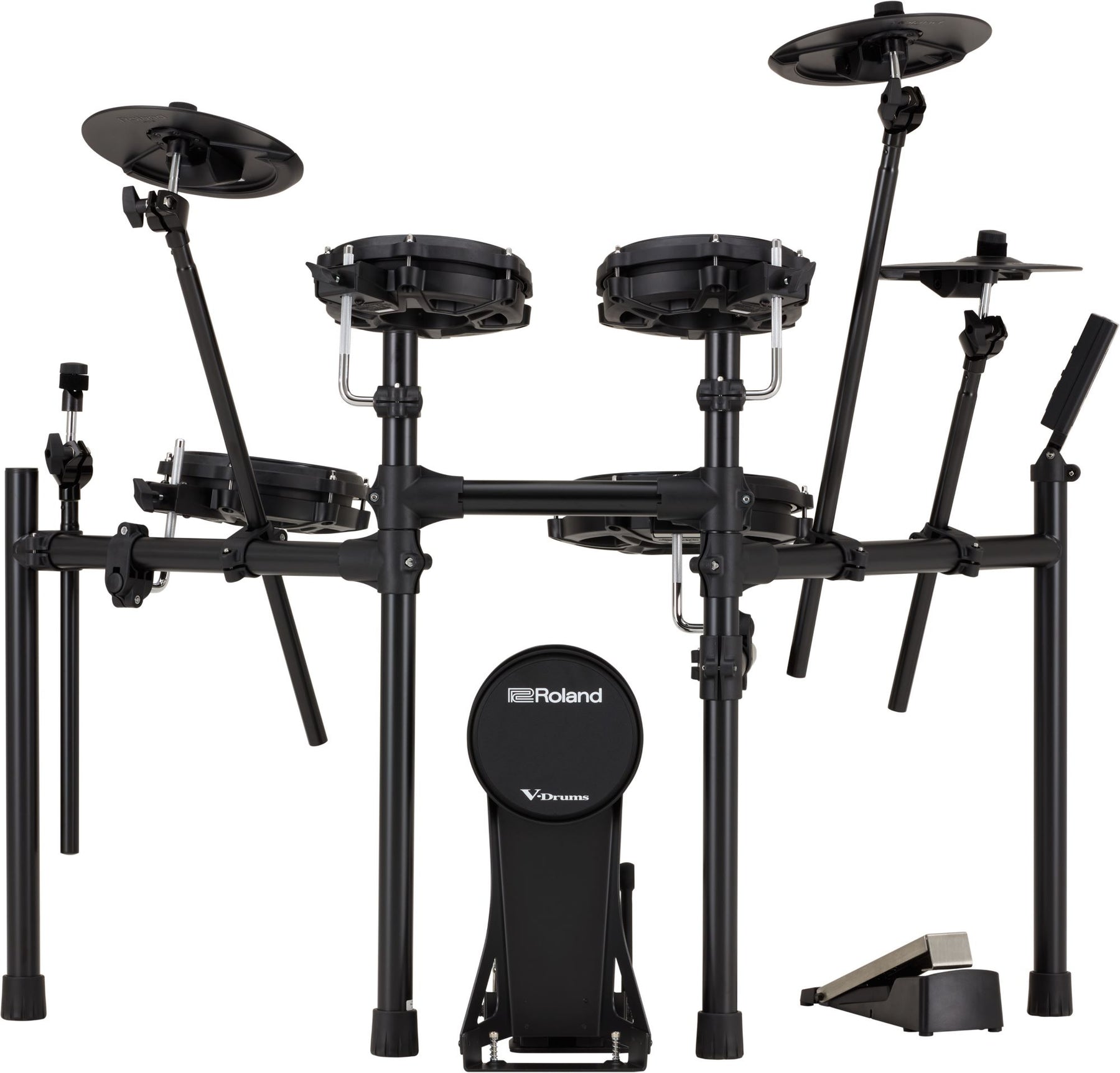

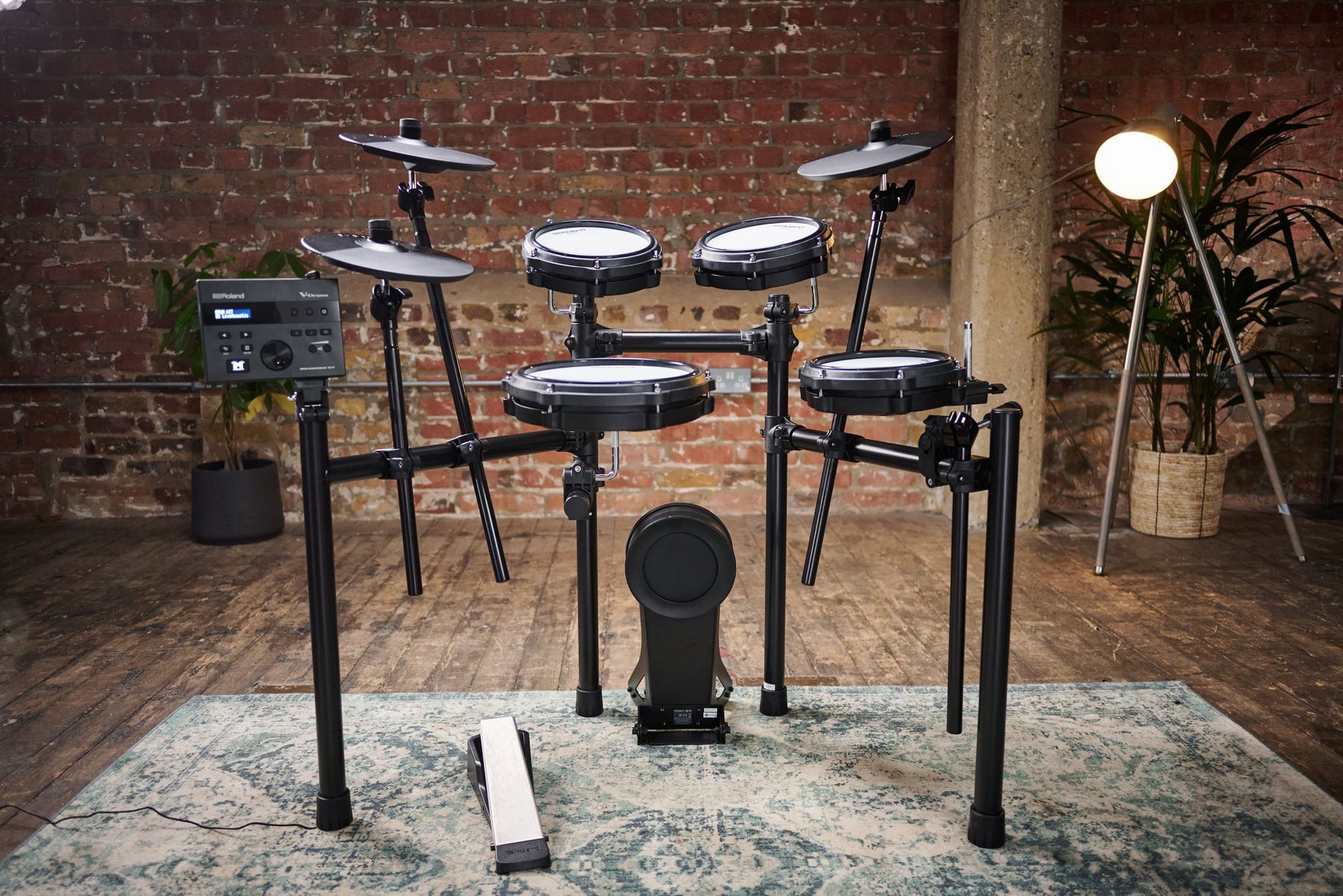

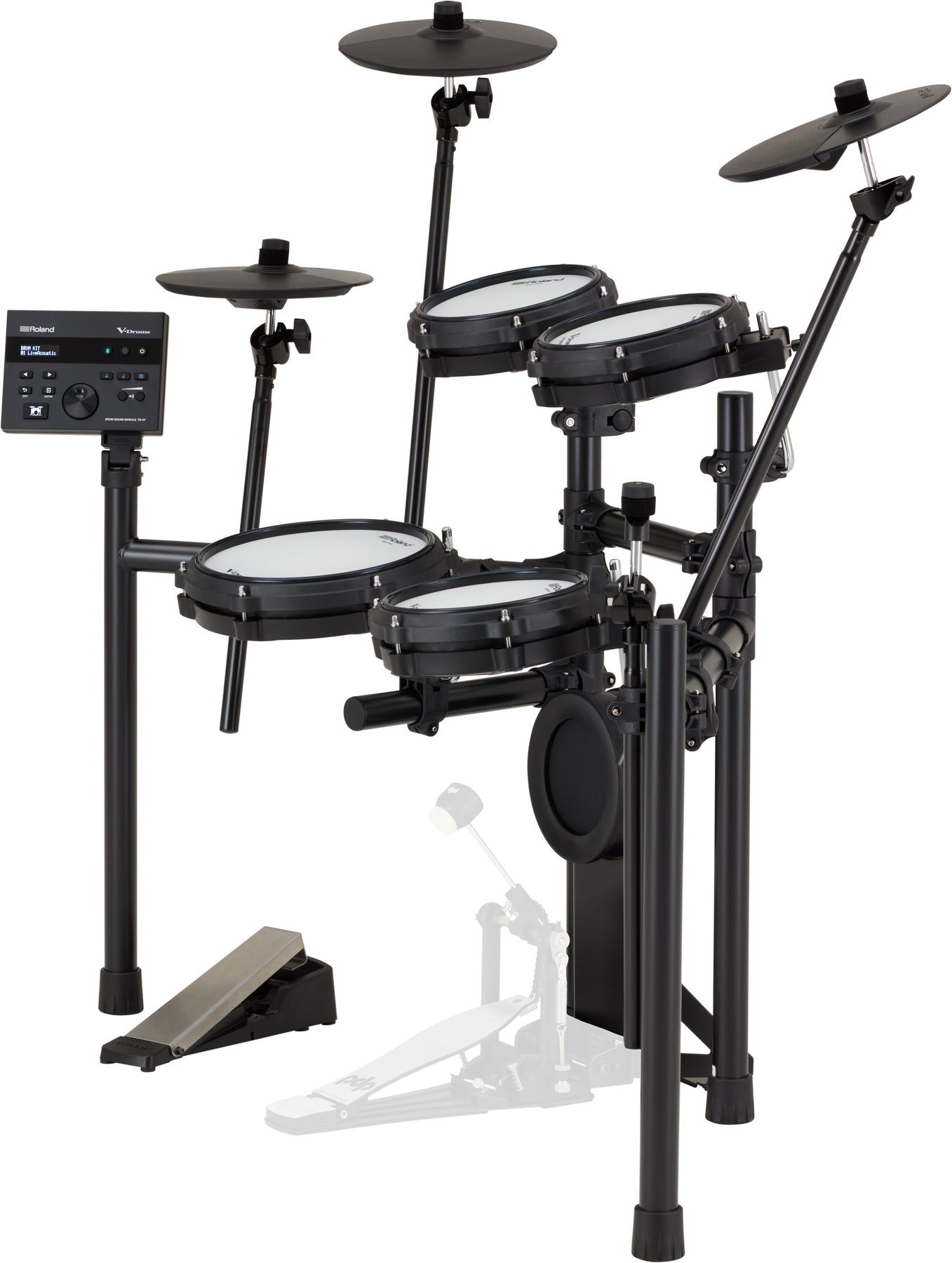

Roland TD-07DMK2

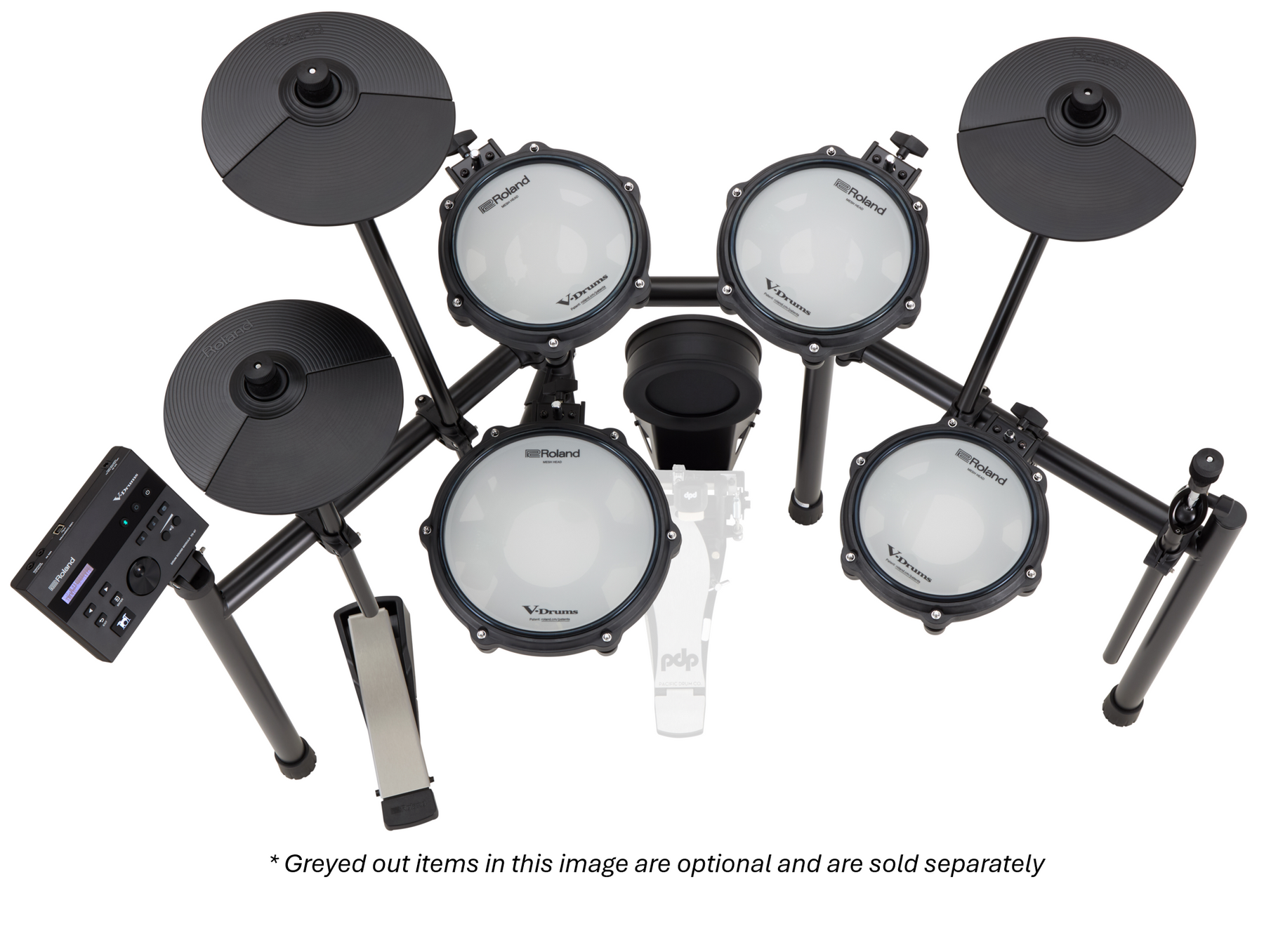

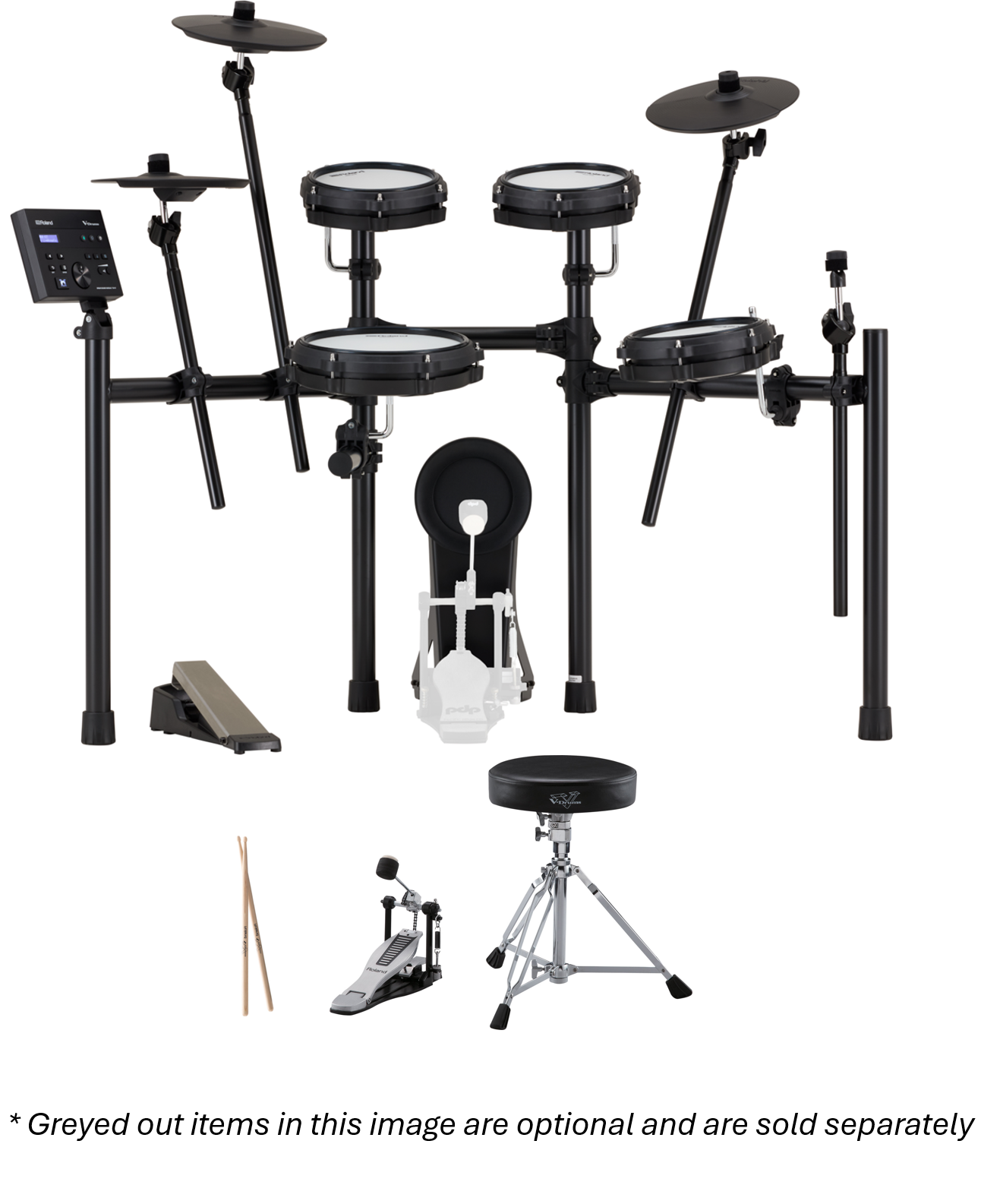

Kit configuration (*1)
Drum sound module: TD-07 × 1
Kick: KD-10 × 1
Snare: PD-10H × 1
Hi-hat: CY-5 × 1
Hi-hat control pedal: Detactable for half-open stroke
Tom 1: PD-8H × 1 ※2
Tom 2: PD-8H × 1 ※2
Tom 3: PD-8H × 1 ※2
Crash 1: CY-5 × 1
Ride: CY-5×1
Drum stand: Four-post type rack stand×1
Drum kits
50 (Preset: over 20)
Instruments
143
Effect Types
Pad Equalizer: each pad
Overhead Mic Simulator
Room
Multi-Effects: 1 system, 30 types
Coach functions (6 modes)
Time check (easy)
Time check (hard)
Quiet count
Auto up/down
Change-up

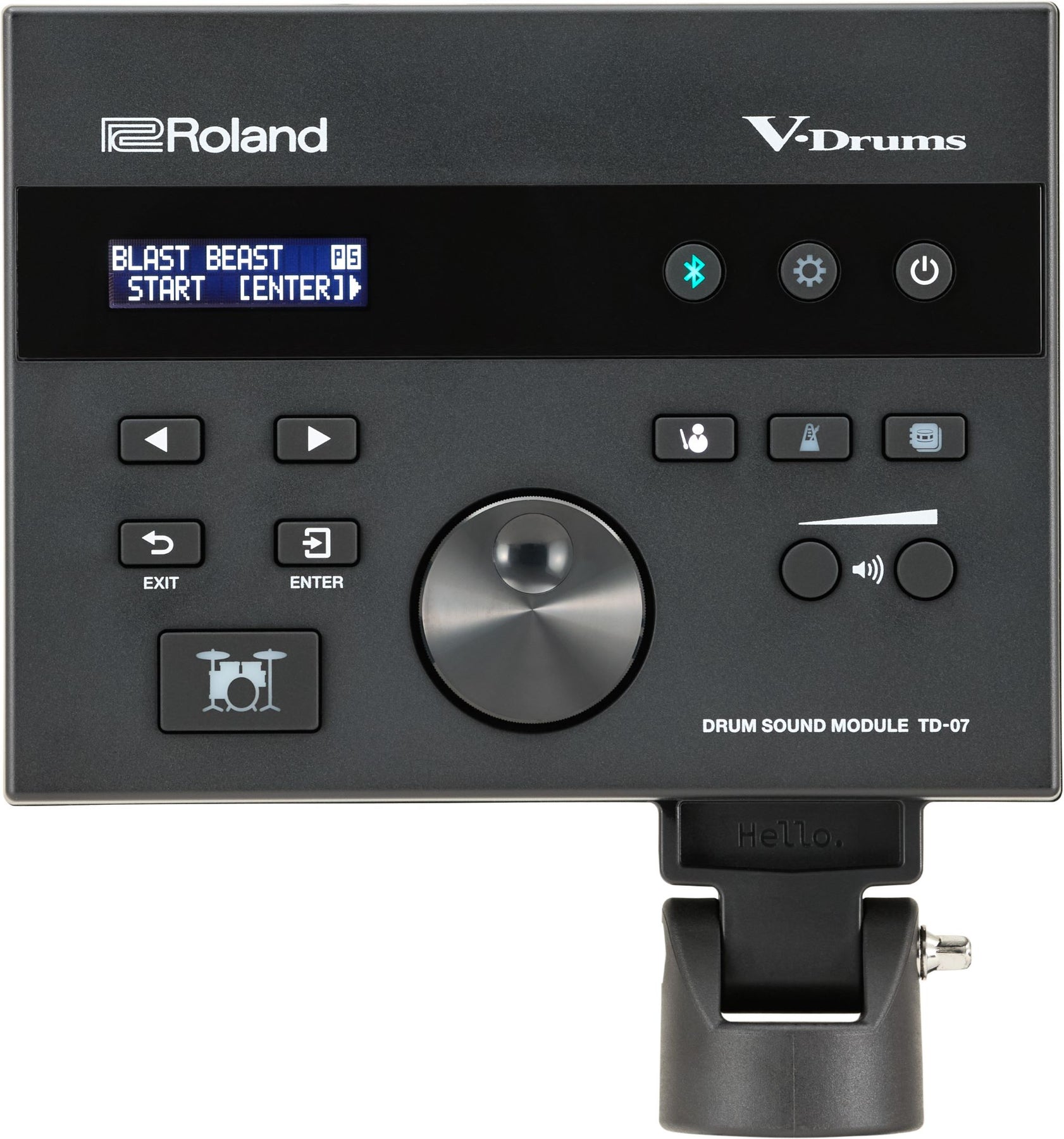

BLAST BEAST

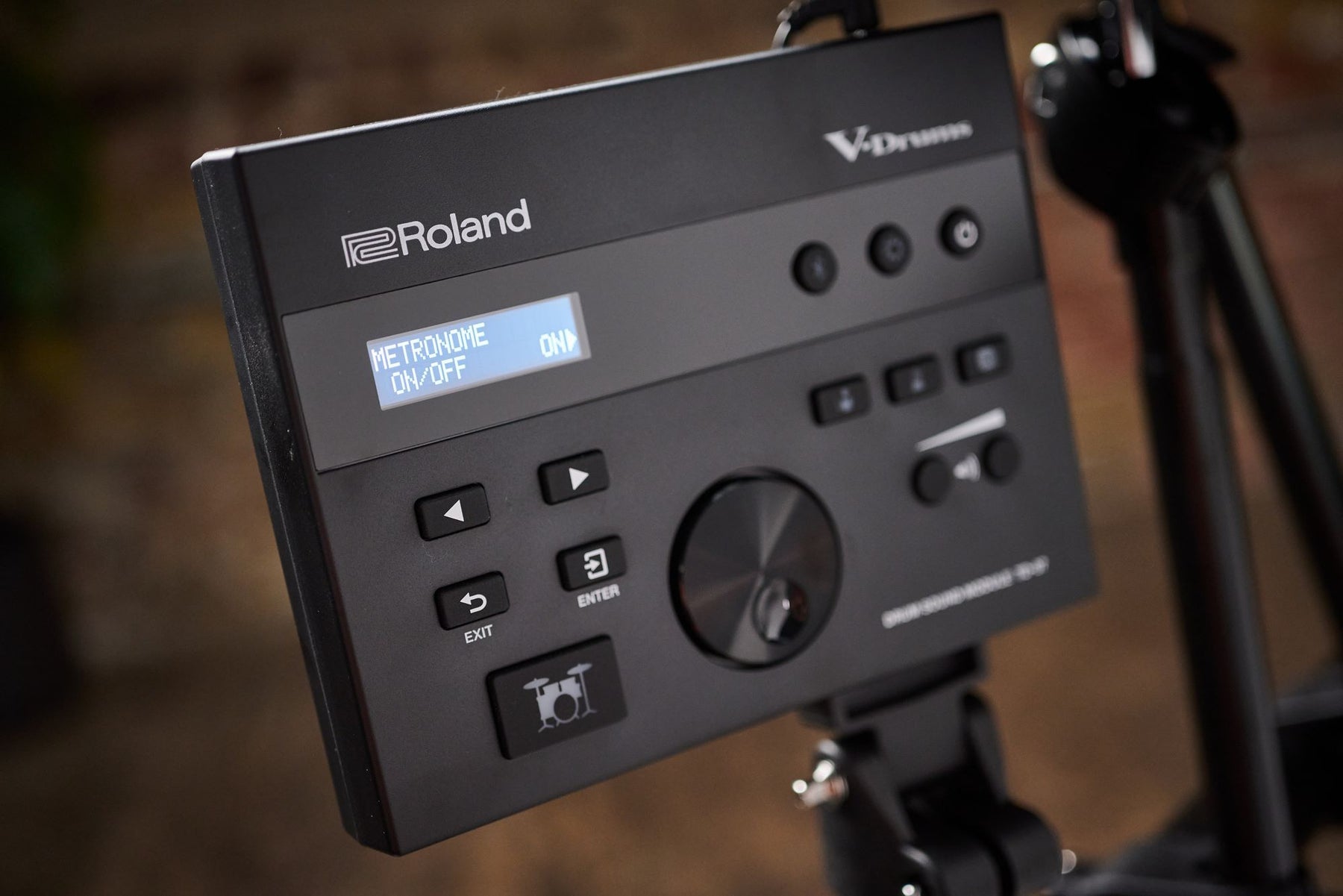

Metronome
Tempo (20--260)
Rhythm type (5 types)
Sounds (15 types)
Bluetooth
Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display
16 characters x 2 lines LCD (with backlight)

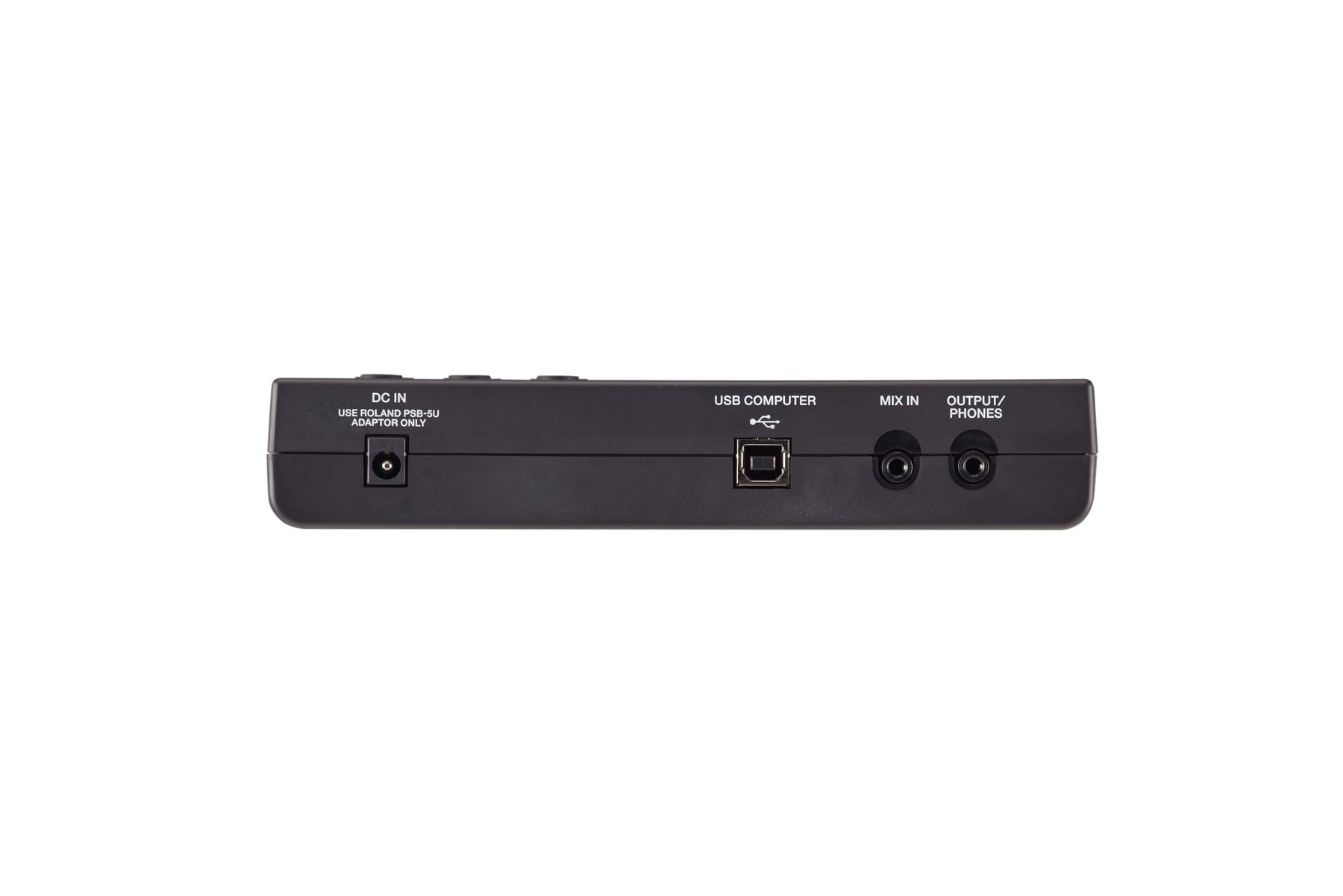

Connectors
OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)
USB COMPUTER
Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *3
USB Audio
Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 channels
Playback: 2 channels
Power supply
AC adaptor (DC 12 V)
Current draw
250 mA
Power consumption when in off mode (when the power automatically turns off)
0.1 W
Size and Weight
Width 1,300 mm / 51-3/16 inches
Depth 1,100 mm / 43-5/16 inches
Height 1,200 mm / 47-1/4 inches
(including sound module, kick pad, kick pedal and drum throne)
Weight 20.1 kg / 44 lbs 6 oz

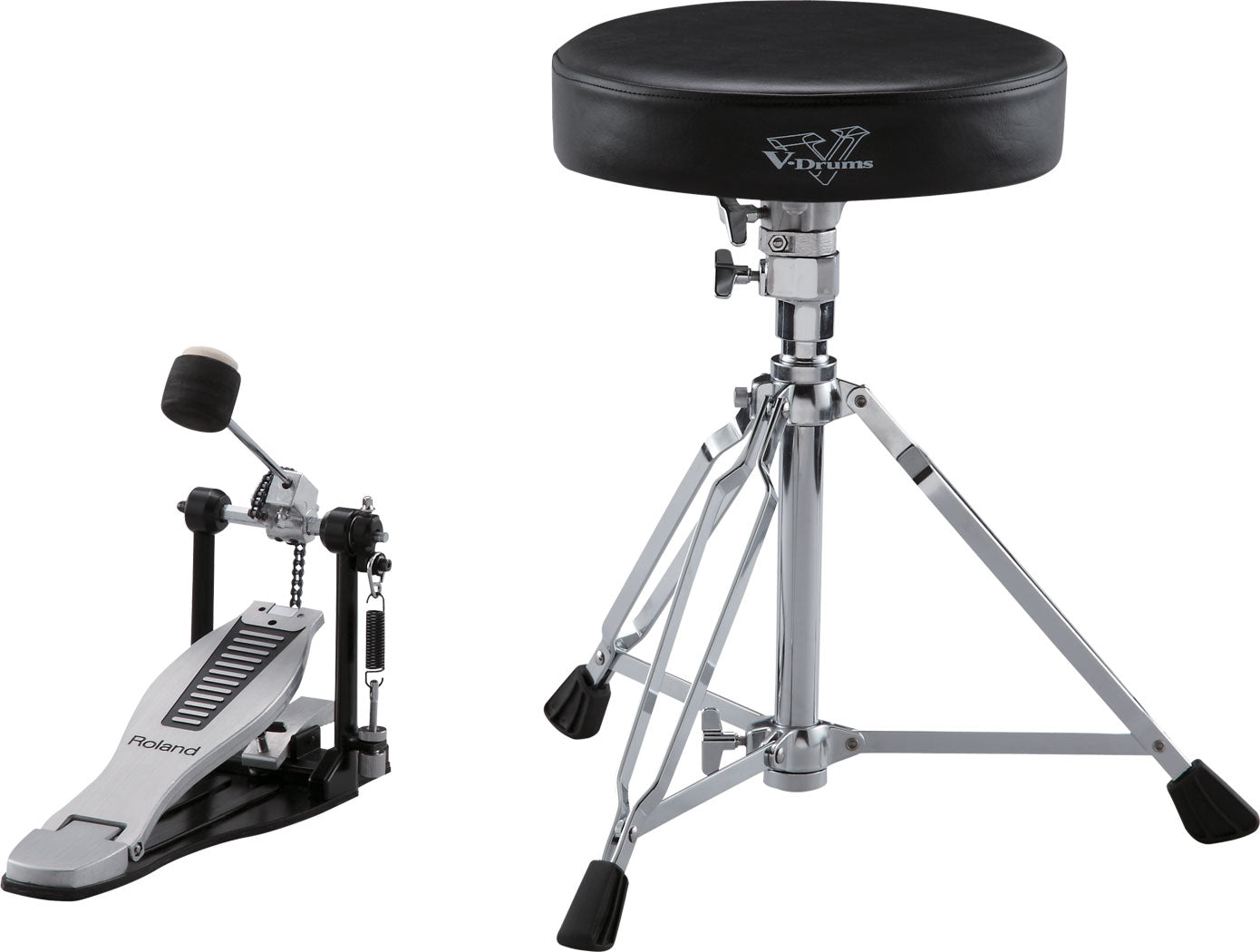

Roland DAP-3X
Kick Pedal
Material: Steel, Aluminum
Weight: 2.2 kg (4 lbs 14 oz)
Beater head: Plastic/Felt
Drum Throne
Material Steel, PVC
Dimensions: Seat diameter 305 mm (12-1/16 inches) * The height is adjustable. 490 mm to 670 mm (19-5/16 inches to 26-7/16 inches)
Weight: 4.3 kg (9 lbs 8 oz)
Drumsticks
Material: Hickory
Length: 406 mm (16 inches)
Other
Accessory: Owner's Manual
