Sound Generator
ZEN-Core
Tones
1,186 tones (Including 32 Minions tones)
74 Drum kits
Sound packs from Roland Cloud are available
Effects
Tone MFX: 2 systems, 93 types
Total MFX: 1 system, 15 types
Reverb: 1 system, 4 types
Keyboard
61 keys (Box-shape Keys with velocity)
Touch Sensitivity
Key Touch: 9 types, fixed touch
Speaker
Speaker: (12 cm / 4-3/4 inches x 6 cm / 2-3/8 inches x 2) x 2
Rated Power Output
2.4W x 2

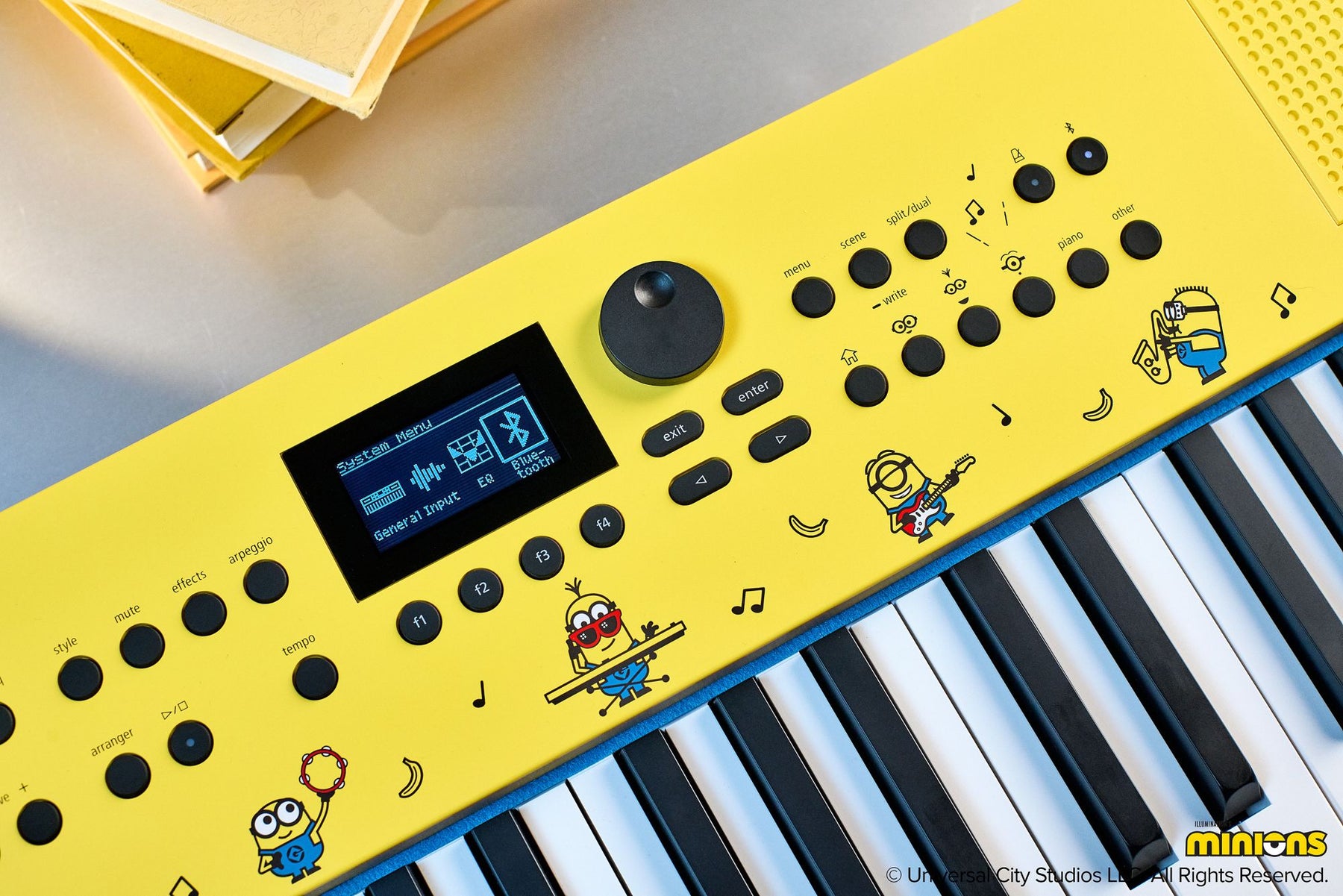

Bluetooth
Bluetooth Ver 5.0
Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
CODEC: SBC (Supports SCMS-T content protection)
Styles
Preset: 203 styles
Z-Style packs from Roland Cloud are available
Functions
Start, Stop, Intro, Ending, Sync Start, Variation1, Variation2, Variation3, Variation4, Part Mute
Chord Sequencer
Preset Chord Pattern: 304 types
User Scene
Scene: 256
* Import / export possible
Playable Software
Proprietary MIDI format (99 songs, Approx. 70,000 notes memory per song)
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 - 320 kbps, requires USB flash drive)
Recordable Software
Proprietary MIDI format
Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB flash drive)
Master Tuning
415.3 - 466.2 Hz (Adjustable in increments of 0.1 Hz)
Convenient Functions
Metronome (Adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)
Transpose (Keyboard/Style: in semitones)
Octave Shift
Dual
Split (Split point adjustable)
Center Cancel
Arpeggiator
Auto Off

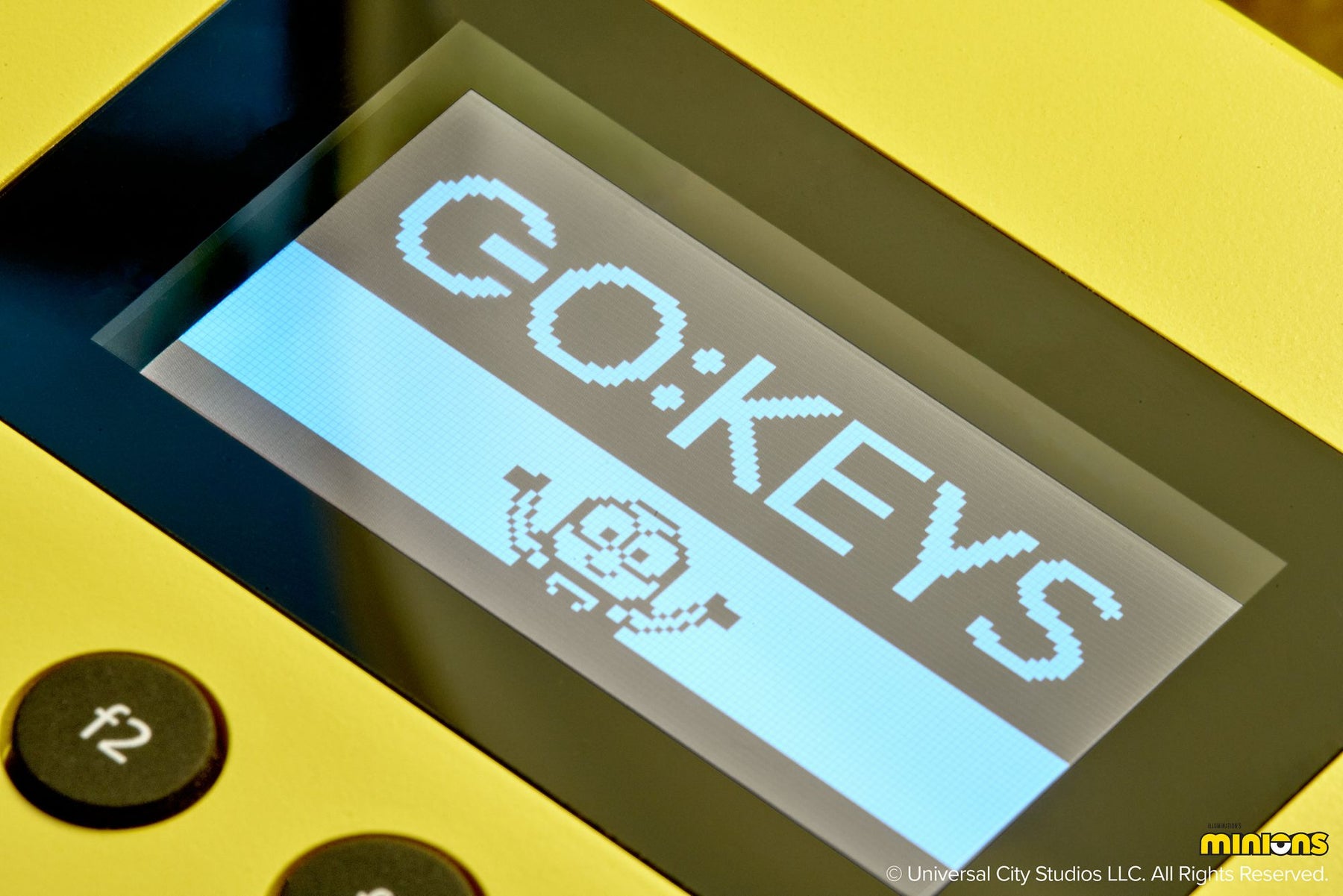

Display
Graphic LCD 128 x 64 dots
Control
Master Volume slider
Pitch Bend Wheel

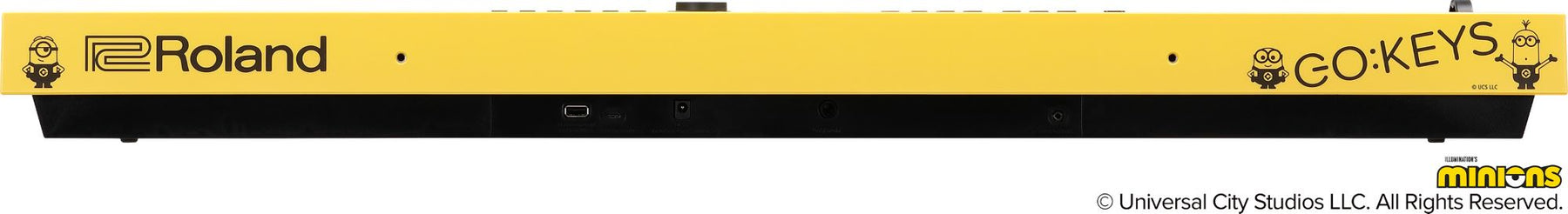

Connectors
DC In jack
Hold pedal jack (Capable of continuous detection when optional pedal connected)
USB COMPUTER port: USB Type-C® (Class Compliant for Audio and MIDI)
USB MEMORY / EXT DEVICE port: USB A (Mass Storage, Roland Cloud Connect WC-1)
Phones jack: Stereo miniature phone type
Power Supply
AC adaptor or Alkaline battery (AA, LR6) / Rechargeable Ni-MH battery (AA, HR6) x 8
* Carbon-zinc batteries cannot be used.
Power Consumption
7 W (When using the included AC adaptor)
*Power consumption when in OFF mode (when the power automatically turns off): 0.1 W
Battery Life for Continuous Use
Rechargeable Ni-MH batteries (AA, HR6): Approximately 6 hours (When using batteries having a capacity of 1,900 mAh.)
Alkaline batteries (AA, LR6): Approximately 5 hours
*This figure will vary depending on the actual conditions of use.
Accessories
Quick Start
Leaflet "USING THE UNIT SAFELY"
Leaflet "ABOUT THIS PRODUCT"
AC Adaptor
Power Cord
Option (Sold separately)
Dedicated music rest: MRGKS3/5
Keyboard stand: KS-11Z, KS-13, KS-20X
Damper pedal: DP series
Wireless adapter: WC-1
Size and Weight (Detached music rest)
Width 950 mm / 37-7/16 inches
Depth 286 mm / 11-5/16 inches
Height 87 mm / 3-7/16 inches
Weight 4.5 kg, 9 lbs / 15 oz
Size and Weight (With music rest)
Width 950 mm / 37-7/16 inches
Depth 395 mm / 15-9/16 inches
Height 245 mm / 9-11/16 inches
Weight 5.1 kg / 11 lbs 4 oz
